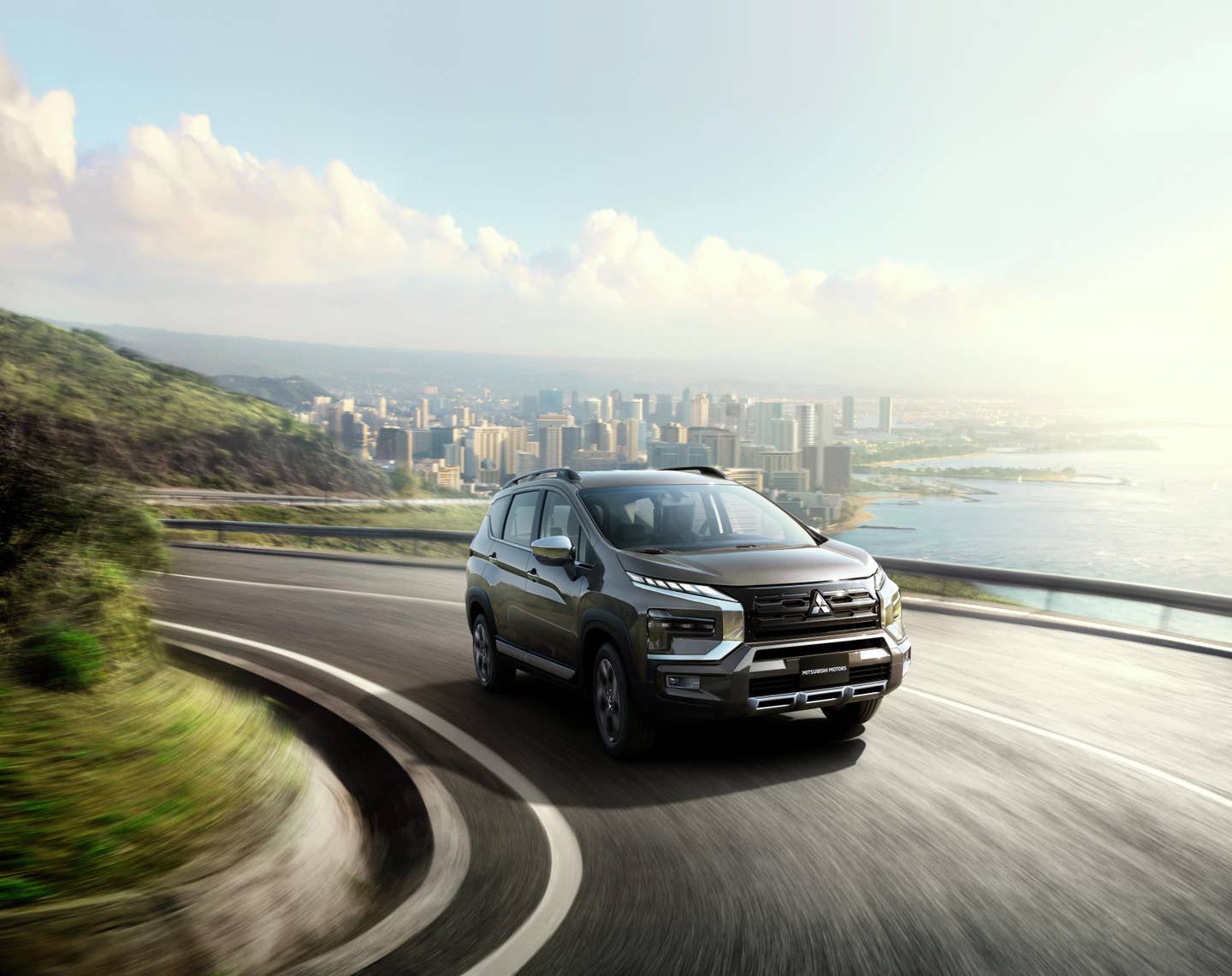

XPANDER CROSS
Venture further out with the redesigned XPANDER CROSS
SPACIOUS 7-SEATER MPV
ECONOMICAL ENGINE
TOUGHER SUV APPEARANCE
DRIVING THE XPANDER CROSS
Powerful capability in any situation
The XPANDER CROSS is a new breed of crossover. At its heart is an MPV with a large, welcoming interior, the body of an SUV, and rugged go-anywhere features.
EXTERIOR
SUV features from every angle
The XPANDER CROSS is full of SUV touches – high ground clearance, alloy wheels and solid looks that says it’s ready to take on the world.
INTERIOR
An interior space, ready to welcome you
Our interior design philosophy was to create a calm, welcoming space with a high level of comfort. Discover what we’ve done to make every journey more serene.
SAFETY
The performance you desire. The safety you need
The XPANDER CROSS has physical safety features and driver-assist safety systems, to offer you protection on every journey.
UTILITY
Smart storage solutions
The redesigned XPANDER CROSS is full of useful touches, such as a USB charging outlet and plenty of storage, so, it’s ready for maximum enjoyment and fun.
- 1.5L Unleaded
- 2WD Automatic
- 4AT(F4AWB)
- DOHC 4 Valve
Please note: Image shown may not be an accurate representation of the specific model.
- 1.5L Unleaded
- 2WD Automatic
- 4AT(F4AWB)
- DOHC 4 Valve
Please note: Image shown may not be an accurate representation of the specific model.
- Primary specifications
- Exterior
- Side Sill Garnish (Silver)
- Interior
- High-grade fabric
- Light And Visibility
- Front fog lights bezel (Material black)
- Performance
- 205/55R16 91V + 16-inch alloy wheels
- Safety
- Lower anchor and tether anchor for ISO-FIX child seat (for 2nd row seats) X2
- Utility
- Steering Switch Audio
- Performance
- Battery : 34B19L
- Front wheel brake Disc 15" (VENTI), normal pad, with paint
- Rear wheel brake Drum 9" (LT), with paint
- Power brake booster : Master vac, 10"
- Regulation conformity Exhaust emission regulation : EU-STEP4
- Rear exhaust
- Fuel octane (gasoline) RON 90 & OVER, Unleaded gasoline
- Engine cover
- Engine electrical Alternator : 12V - 95A
- Exhaust emission control : O2 sensor x 2
- Catalytic converter M.C.C (manifold catalytic converter)
- Catalytic converter U.C.C (under-floor catalytic converter)
- Fuel pump : Electrical (in tank)
- Fuel vapor gas control : Canister
- Final drive : 2WD
- Body type : Long body
- Body type : Long body, wide fender
- Regulation conformity Flammability resistance
- Tire pressure monitoring system
- Silence grade - A
- Tail pipe (single)
- Under cover front
- Dual horn
- High ground clearance suspension (front & rear)
- Front suspension Macpherson strut with coil spring, stabilizer
- Rear suspension Torsion beam rigid
- Disc wheel (front & rear) : AL 17X6.5J 5-114.3 46 BRT RNA11
- Disc wheel (spare) : Same as front & rear wheel (STD)
- Tire (front & rear) : 205/55R17 91V
- Tire (spare) : Same as front & rear tire
- Hub cap & wheel cover (front & rear) : AL wheel ornament (ON87)
- Tool set (simple set)
- Tire pressure gauge
- Jack set
- Transmission : F4AWB (4A/T)
- Idling neutral control
- Transmission control Shift lock with key inter lock
- Transmission control 6 position
- Safety
- A.Y.C (brake)
- 4ABS
- Active stability control
- Hill start assist system
- Brake assist system (hydraulic)
- EBD (electronic brake distribution)
- Emergency stop signal function
- Immobilizer
- Theft protection device Alarm (horn & turn & buzz), with indicator
- Front door with impact bar
- Rear door with impact bar
- Front seat belt 3p belt with ELR x 2, ELR type : G & WEB. Sense, with pretensioner (both side)
- Rear / 2nd seat belt 3p belt with ELR x 3
- 3rd seat belt 3p belt with ELR x 2
- Rear/2nd seat CRS Attachment for ISO-FIX (seat x 2), tether anchor (seat x 2)
- Passive restraint system : Airbag (driver, passenger)
- Light And Visibility
- Auto lighting control type B
- LED headlamp
- Headlamp Beam aiming, right
- Headlamp leveling device
- Headlamp Extension, black
- Front turn lamp on front comb.
- Side turn lamp (clear lens) on door mirror
- Position (clearance) lamp (LED clear)
- Front fog lamp on bumper
- Front fog lamp (LED)
- Welcome light
- Rear fog lamp, on bumper
- Stop & tail lamp on rear comb.
- Rear turnsignal & hazard lamp Clear (lens), on rear comb.
- Back-up lamp on tailgate
- License plate lamp on tailgate
- High-mount stop lamp (LED type) on tailgate
- Reflex reflector on rear bumper (both side)
- Front room lamp (time delay)
- Rear room lamp (time delay)
- Glass color : Green, ceramic print (black)
- Windshield glass : Laminated
- Rear or back or tailgate window glass : Tempered, with hot wire
- Front door window glass : Tempered, green
- Rear door or side window glass : Tempered
- Quarter window glass : Tempered
- Windshield wiper With intermittent (variable), mist wiper, Wiper circuit with braker, wiper blade (flat type)
- Windshield wiper With rain sensor
- Windshield washer (2 nozzle)
- Rear window wiper & washer with intermittent
- Exterior
- Front bumper (type E)
- Front bumper Color : Color key
- Front bumper With garnish, chrome
- Front bumper With fog lamp bezel, paint A
- Front bumper Under grill (center) : Paint A
- Radiator grille (type E)
- Radiator grille Color : Black type B
- Front air dam extension (black)
- Exterior ornaments Radiator grille (center) : Three-dia mark
- Drip or roof molding (black)
- Roof rail (black, type B)
- Rear bumper (type E)
- Rear bumper Color : Color key
- Rear bumper With garnish, paint
- License plate garnish Type D, color key
- Exterior ornaments Rear ornament (center) : Three-dia mark
- Exterior ornaments Rear ornament (left side) : "XPANDER CROSS" mark type B
- Door sash, black out
- Door outer handle (color key)
- Door lock cylinder (front door, left)
- Belt line molding (bright)
- Side sill garnish, material color (type D)
- Side door garnish, paint
- Wide fender (material color)
- Outside rear view mirror Door mirror, color key (both), elect. r/cont with fold control
- Interior
- Front seat : Standard type, separate, low back
- Front seat : Reinforced seat
- Driver's seat adjuster : Manual (sli,rec)
- Driver's seat adjuster : Height adjuster
- Assistant seat adjuster : Manual (sli, rec)
- Seat back pocket (driver's seat)
- Seat back pocket B (driver's seat)
- Convenience hook (driver's seat)
- Seat back pocket (assistant seat)
- Seat under tray (assistant seat)
- Front seat headrest : Sewn type, adjustable type (up-down)
- Front door trim Full trim, with cup holder (both side), door pocket (both side)
- Front door trim Formed type with armrest type B
- Front door trim With decorative ornament (paint) type B
- Front door trim material : With PVC insert
- Front door trim material : Power window switch panel (material)
- Front door switch (both side)
- Rear/2nd seat : Split back (4:2:4) & cushion (6:4), folded & tumbled
- Rear/2nd seat adjuster : Sliding & reclining
- Center armrest with cup holder (rear/2nd seat)
- Rear/2nd seat headrest : 2pcs, sewn type, adjustable type (up-down)
- Rear door trim Full trim, with cup holder (both side)
- Rear door trim Formed type with armrest type B
- Rear door trim With decorative ornament (paint) type B
- Rear door trim material : With PVC insert
- Rear door trim material : Power window switch panel (material)
- Rear door switch (both side)
- 3rd seat : Separate, fold & stow
- 3rd seat adjuster : Folded & reclining
- 3rd seat headrest : Sewn type, height adjuster
- Parking brake control : Lever type, release knob (material color)
- Steering : E.P.S (electronic power steering)
- Steering column : Tilt & telesco column
- Column switch Turn switch on left side
- Column switch 2 lever (multi use) type, with lane changer
- Steering gear : Rack & pinion type
- Steering lock
- Steering wheel & horn ring : 4s-leather, A/B (4P2)
- Horn pad ornament : Three-dia mark, chrome plated badge
- Steering switch : Cruise control
- Steering switch : Hands free
- Steering switch : Audio
- Steering switch : Information B
- Steering switch : Voice control
- Styled type shift knob for A/T (PVC)
- Shift indicator panel with illumination
- Tailgate opener (elec.type)
- Fuel lid opener
- Instrument panel type B
- Instrument panel garnish (print) type C
- Glovebox
- Instrument panel crash pad : Partial pad
- Floor console Console box with lid
- Floor console Shift lever panel (paint)
- Floor console With ashtray for front passengers
- Floor console Cup holder
- Floor console (front) Multi holder
- Instrument panel center panel : 2DIN type (paint)
- Instrument panel air outlet grille (paint)
- Instrument panel air outlet grille Bright knob
- Combination meter cluster Full display meter
- Analogue speedometer, km/h
- Tachometer
- Odometer
- Trip meter LCD (single) type, with fuel consumption
- Fuel gauge
- Low-fuel warning lamp
- Engine coolant temp indicator
- Oil pressure warning lamp
- Charging warning lamp
- Parking brake warning lamp
- Brake fluid level warning lamp
- A.B.S failure indicator
- Headlamp failure indicator
- Center display (MID)
- Airbag indicator
- Upper beam indicator
- Fog lamp indicator
- Speed warning indicator
- Turnsignal & hazard indicator
- Engine check warning
- Seat belt warning lamp (driver & passenger)
- Door & tailgate ajar warning lamp
- ECO indicator
- ECO drive assist indicator
- ECO score indicator
- A/T position indicator
- OD off indicator
- Electric power steering failure indicator
- Lighting monitor
- Ignition key reminder
- Seat belt warning buzzer
- Door ajar buzzer
- Rear defogger switch
- Hazard lamp switch
- Active stability control switch
- Sunvisor (2pcs) Trim material : PVC, Ticket holders (driver side)
- Sunvisor Vanity mirror with lid (passenger side)
- Inside rear view mirror : Day-night & adhesive type
- Door inside handle (bright)
- Inside lock knob (material molded)
- Headlining : Formed type
- Front pillar trim
- Center pillar trim (lower)
- Center pillar trim (upper)
- Rear pillar trim
- Quarter trim : Formed type, with cup holder (both side)
- Cowl side trim
- Scuff plate
- Foot rest
- Floor mats & carpets Material : Needle punch, with heel pad (driver side)
- Trunk & cargo floor mats One piece flat type, material : needle punch
- Luggage floor board
- Cargo floor box
- Front & rear seats Trim material : Fabric F
- Utility
- Digital audio broadcast radio
- Radio & tape player : W2DIN AM/FM SDA E002C
- 4 speaker
- Fin antenna
- Digital audio broadcast antenna
- Cruise control
- Door locking system : NAS,EXP type (driver : 1touch, o/ride)
- Center door lock Key (driver) & center switch (driver) (type J), ignition key reminder (driver), crash detection door lock shut down, keyless entry with 2 transmitters
- Keyless operation system 1button unlock, lock (front door both), handle act unlock, button lock (gate), one touch start system
- Rear door child proof
- Power window (front & rear door) Main switch (driver, auto up & down), with safety system (front driver door)
- Key set : Master key x 2 (with protector x 2), key-code tag
- Assist strap for 3rd seat (2pcs)
- Assist strap (retractable type, 5pcs)
- Switch illumination
- Accessory socket (instrument panel)
- Accessory socket on rear quarter
- Rear view system
- USB port
- A/C (manual, capacity up)
- Air filter
- Refrigerant R134A
- Heater & A/C control : Push button type
- Rear cooler (overhead)
- A/C condenser fan motor : Fan motor idle noise control
- Others
- Owner's guide & service booklet for G/EXP (English & Arabic)
- VIN plate
- Fuel consumption label for GCC
- Emergency triangle
- Dummy OPC : Extra hot zone
- Service circuit for NAVI
- Service circuit for corner sensor
For full details and specifications, please download the brochure.
